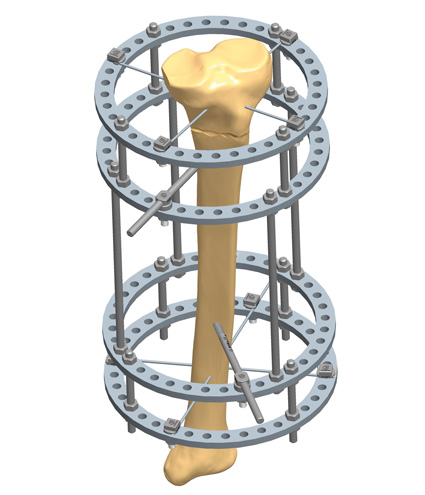

3C.1 Fracture of the proximal tibia treated with the TrueLok Fixator.

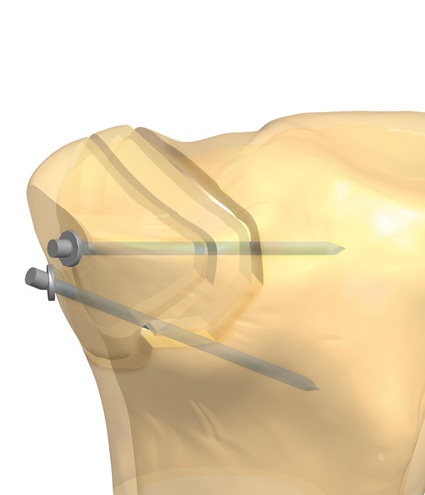

3C.2 Fracture of the proximal tibia treated with the Fragment Fixation System.

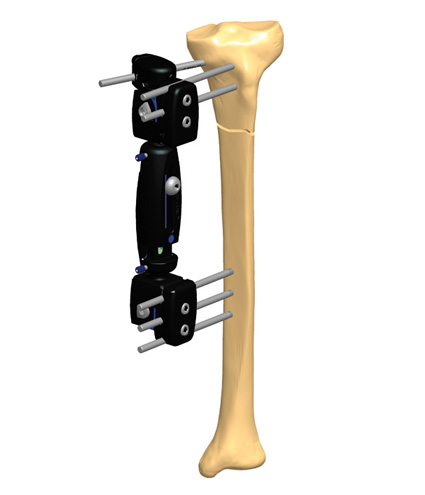

3C.3 Fracture of the proximal tibia treated with XCaliber Fixator (91000 series) with T-Clamp.

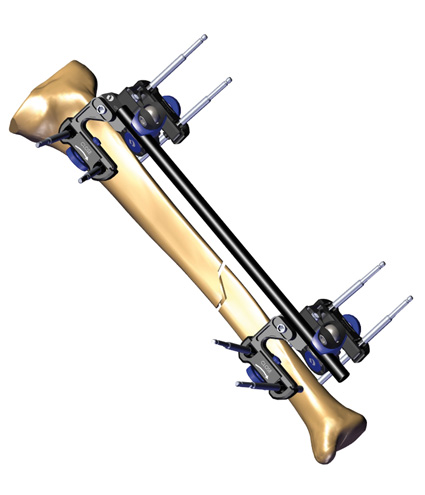

3C.4 Diaphyseal fracture of the tibia treated temporarily with Galaxy UNYCO Diaphyseal Tibia frame and monocortical screws. Note: Galaxy UNYCO Diaphyseal Tibia Sterile Kit is indicated for tibial fractures extending from about 8 cm below the knee to about 7 cm above the ankle joint.

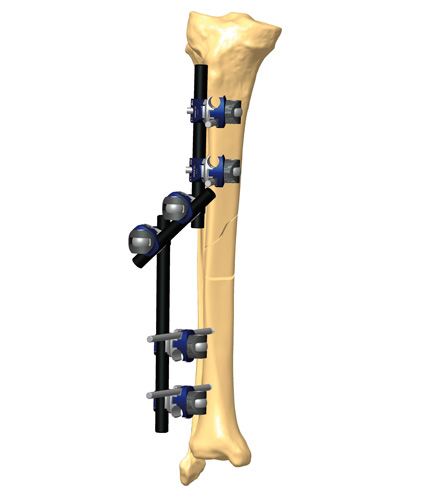

3C.5 Fracture of the tibial shaft treated with Galaxy Fixation™ system.

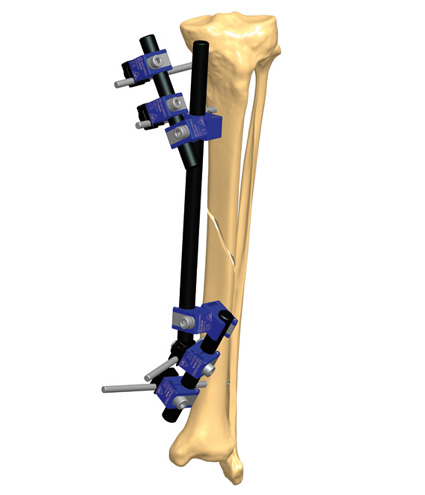

3C.6 Fracture of the tibial shaft temporarily stabilized using the Prefix2 Fixator (92000 series).

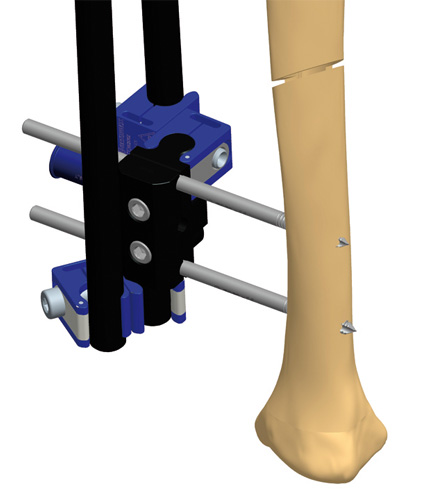

3C.7 Fracture of the tibial shaft temporarily stabilized using the Prefix2 Fixator (92000 series). Image shows use of the Multi-screw clamp.

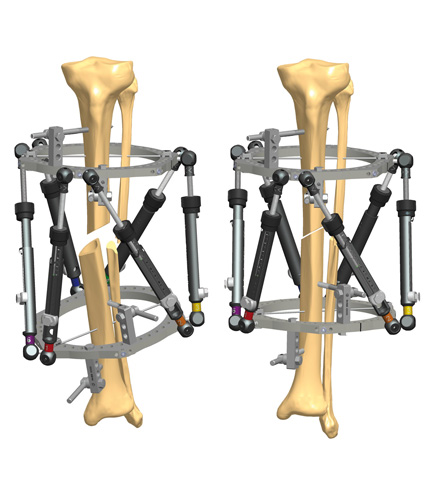

3C.8 Fracture of the tibial shaft treated with TL-HEX.

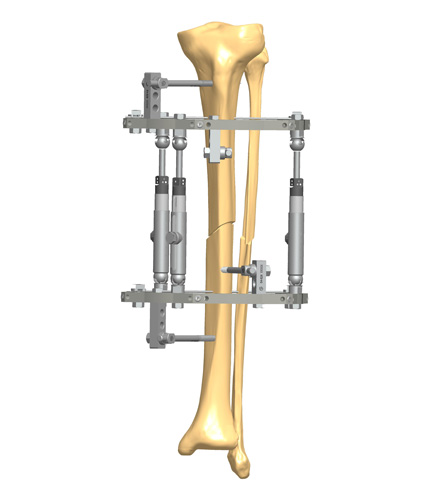

3C.9 Diaphyseal fracture treated with TL-HEX Trauma

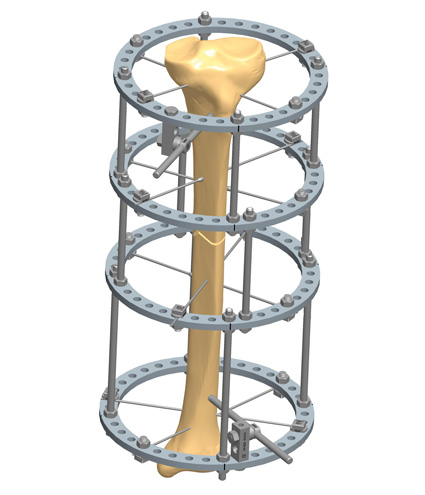

3C.10 Fracture of the tibial diaphysis treated with TrueLok Fixator.

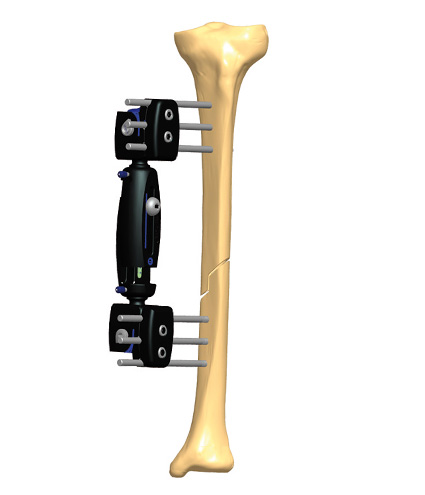

3C.11 Fracture of the tibial diaphysis treated with the XCaliber Fixator (91000 series).

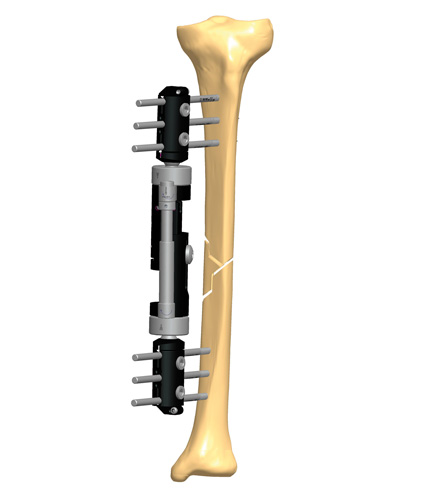

3C.12 Fracture of the tibial diaphysis treated with the Procallus Fixator (90000 series).

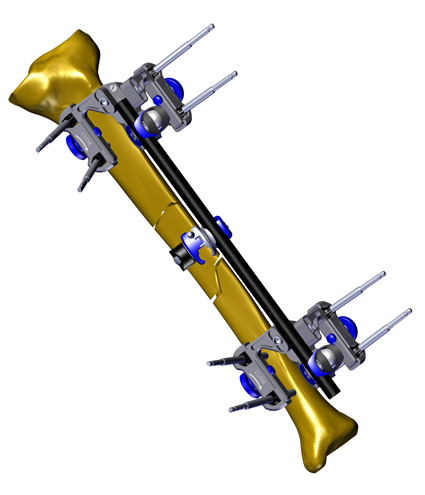

3C.13 Segmental fracture of the tibial diaphysis treated temporarily with Galaxy UNYCO Diaphyseal Tibia frame and monocortical screws. The middle segment is stabilised using a UNYCO screw in a Galaxy Large Clamp attached to the connecting rod. Note: Galaxy UNYCO Diaphyseal Tibia Sterile Kit is indicated for tibial fractures extending from about 8 cm below the knee to about 7 cm above the ankle joint.

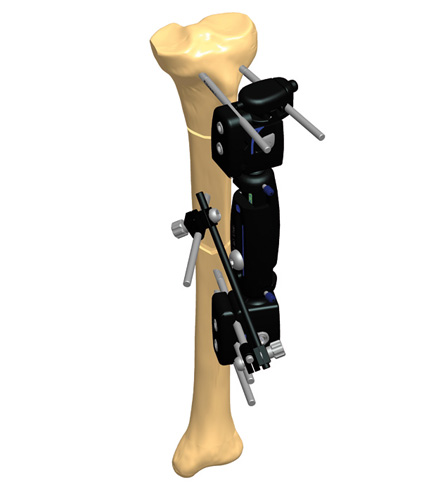

3C.14 Large unstable, segmental fracture of the tibial shaft; stabilized using the XCaliber Fixator (91000 series) with a T-Clamp for the proximal segment and an additional screw in the central segment.

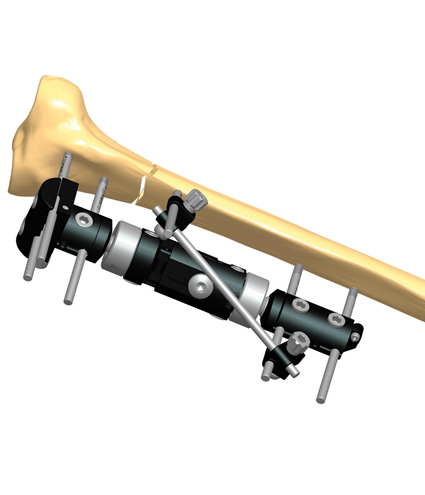

3C.15 Large unstable, segmental fracture of the tibial shaft; stabilized using the Procallus Fixator (90000 series) with a Metaphyseal Clamp for the proximal segment and an additional screw in the central segment.

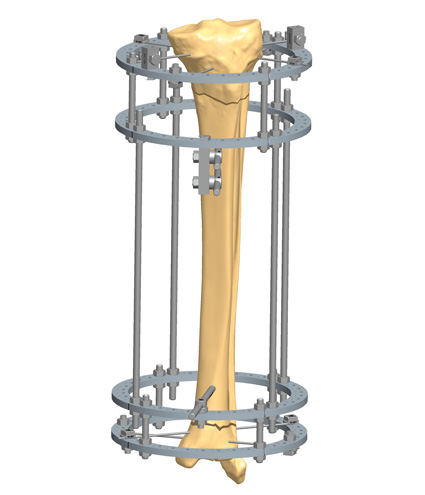

3C.16 Long diaphyseal segmental fracture, stabilized using the TrueLok Fixator.

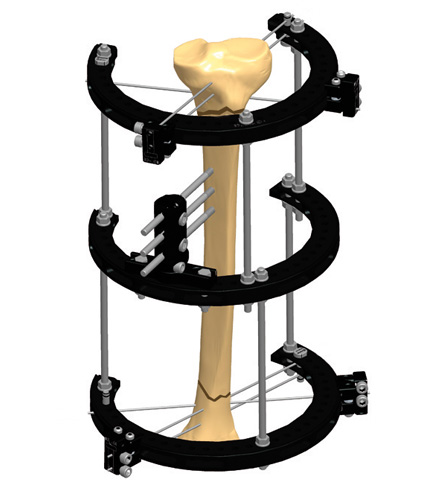

3C.17 Long diaphyseal segmental fracture, stabilized using the Sheffield Ring Fixator.

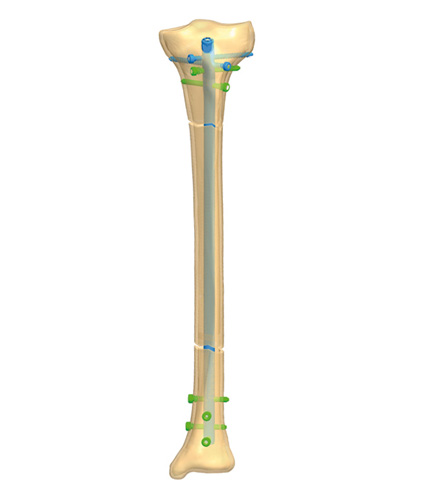

3C.18 Long diaphyseal segmental fracture of the tibial shaft stabilized using the Centronail Titanium Tibial Nailing System.

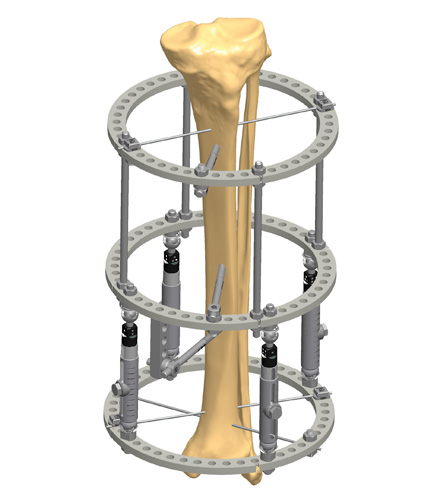

3C.19 Tibial Fracture treated with TrueLok and rapid adjust struts.

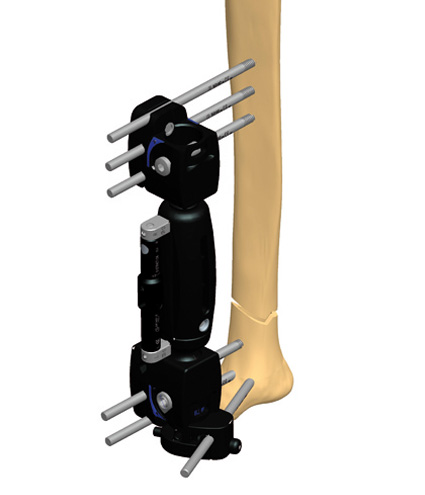

3C.20 Distal tibial fracture stabilized using the XCaliber Fixator (91000 series) with the T-Clamp distally.

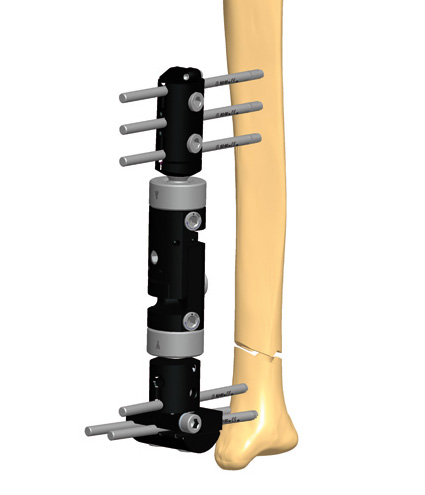

3C.21 Distal tibial fracture stabilized using the Procallus Fixator (90000 series) with the Metaphyseal Clamp distally.
The T-Clamp or Torbay Garches Clamp can be used as an alternative to Metaphyseal Clamp.

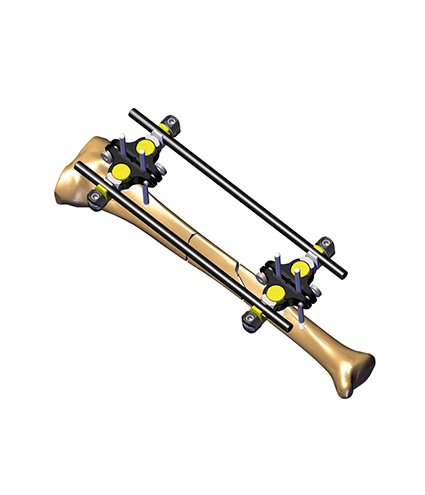

3C.22 Tibial diaphysis fracture in children treated with Galaxy Fixation™ system.

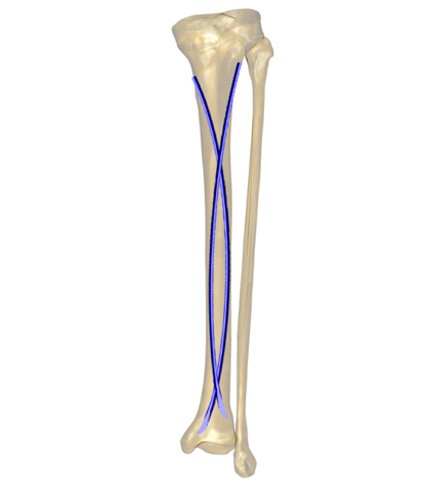

3C.23 Tibia shaft fracture (MJ-FLEX The New Metaizeau Nail™)

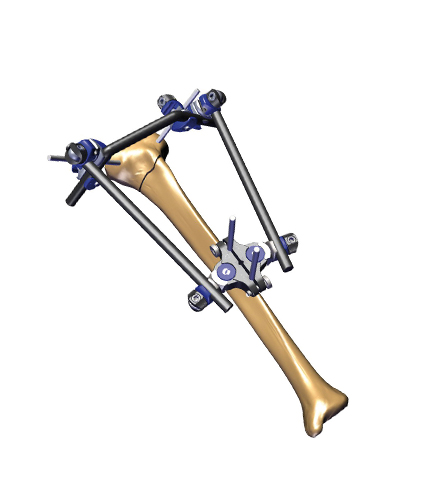

3C.24 Articular fracture of the proximal tibia treated with Galaxy Fixation™ system.

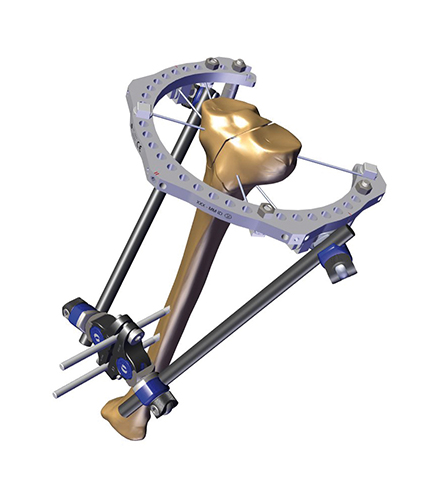

3C.25 Articular fracture of the proximal tibia treated with Galaxy Fixation™ system and TL-HEX.

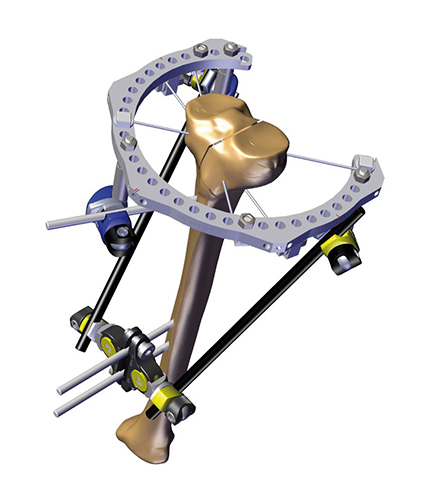

3C.26 Articular fracture of the proximal tibia in children treated with Galaxy Fixation™ system and TL-HEX.
