3A.45 Correction of a varus deformity of the distal femur which has occurred during lengthening with the LRS ADVanced. (a) Angular deformity following lengthening procedure; the distal clamp of 53000 series fixator is a Micrometric Swivelling Clamp. (b) Deformity corrected by acute shortening and callus manipulation. Use of HA-coated screws is recommended. Note: When a Paediatric Swivelling Clamp is sed, it should be applied only for correction of the deformity. Do not lengthen with the Paediatric Swivelling Clamp.

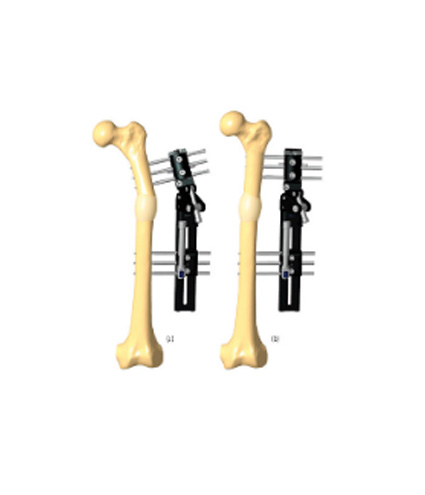

3A.46 Varus deformity of the proximal femur following lengthening; the LRS ADVanced with the Multiplanar Clamp. (a) Angular deformity following lengthening. (b) Acute shortening and correction of deformity by callus manipulation. Use of HA-coated screws is recommended.
