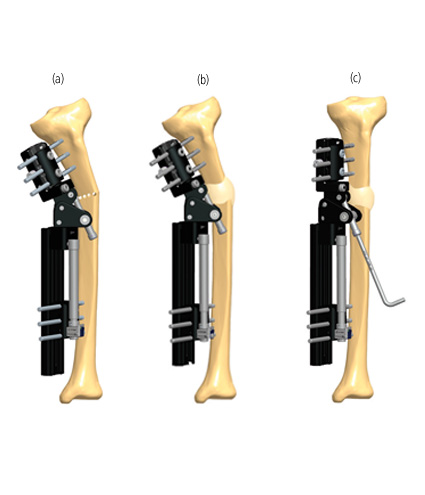

3C.27 Varus deformity of proximal tibia.
(a) LRS ADVanced in place with Multiplanar Clamp proximally; osteotomy performed.
(b) Initial lengthening by callotasis to stretch soft tissues slowly.
(c) Acute shortening and angular correction by callus manipulation.

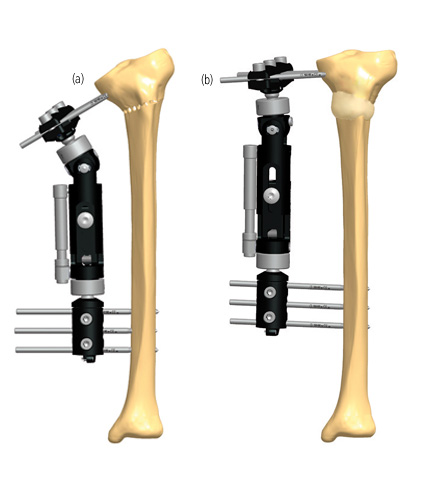

3C.28 Varus deformity of proximal tibia; 90000 series with Self-Aligning Body and Torbay Garches Clamp, which may be used as an alternative to the T-Clamp included in the Self-Aligning Articulated Body Assembly Kit 90035.
(a) Osteotomy performed with fixator in place.
(b) Gradual correction by hemicallotasis.

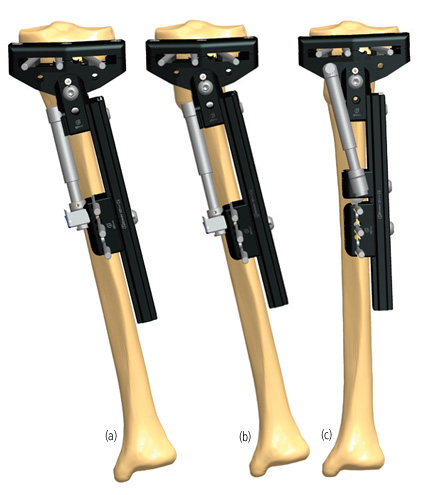

3C.29 Varus or valgus deformity of the proximal tibia.
(a) LRS ADVanced with OF-Garches T-Clamp attachment proximally, mounted anteriorly on proximal tibia; complete osteotomy performed.
(b) Initial lengthening to free bone ends, prior to angular correction.
(c) Progressive angular correction.

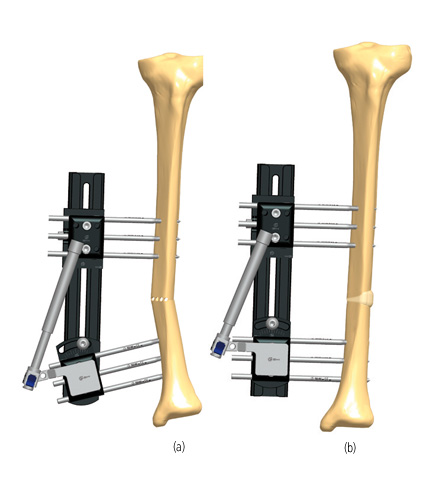

3C.30 Valgus deformity of tibial diaphysis.
(a) LRS ADVanced in place with Micrometric Swivelling Clamp distally and Translation Clamp proximally osteotomy performed.
(b) Initial lengthening by callotasis to stretch soft tissues slowly. Acute shortening and angular correction by callus manipulation.

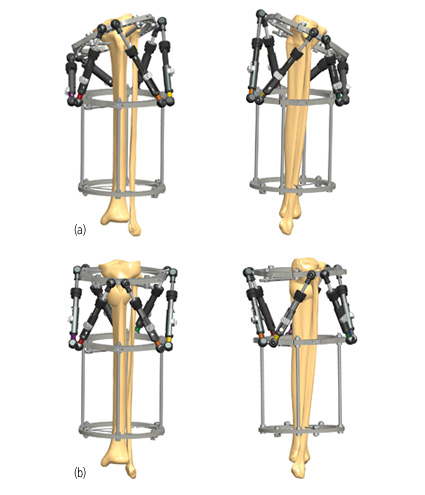

3C.31 Proximal Tibial Deformity.
(a) TL-HEX in place.
(b) Progressive correction.

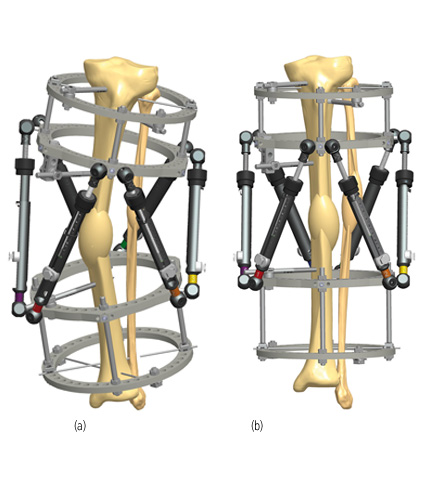

3C.32 Oblique deformity of the tibial shaft.
(a) TL-HEX in place.
(b) Gradual Correction.

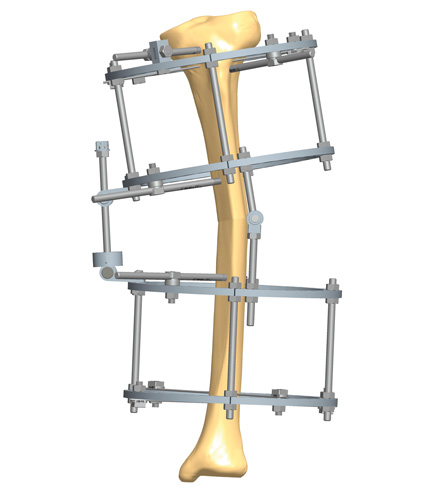

3C.33 Varus deformity of the tibial diaphysis treated with the TrueLok Fixator with Threaded Bars.

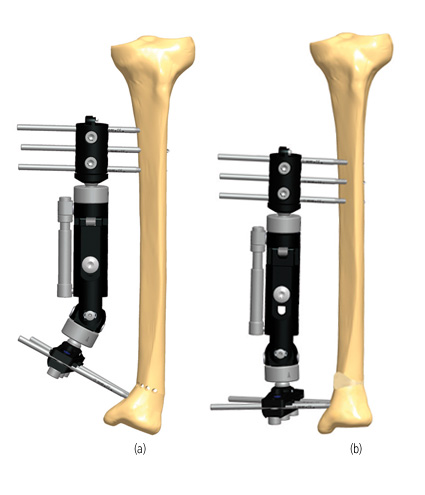

3C.34 Varus deformity of distal tibia; 90000 series with Self-Aligning Body and Torbay Garches Clamp, which may be used as an alternative to the T-Clamp included in the Self-Aligning Articulated Body Assembly Kit 90035.
(a) Osteotomy performed with fixator in place.
(b) Gradual correction by hemicallotasis.
