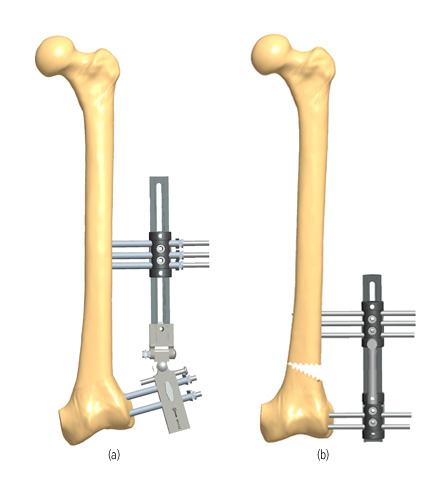

3A.28 Angular (valgus) deformity distal femur; Paediatric LRS with LRS Straight Clamp Template for Acute Correction.
(a) Straight Clamp on rail and Acute Correction Template at end of rail.
(b) Osteotomy and correction of deformity; definitive fixator in place.
Use of HA-coated screws is recommended.

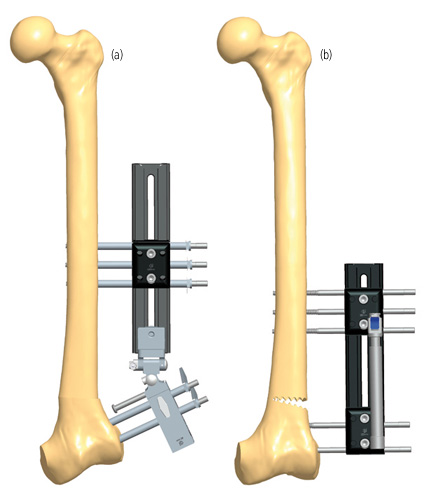

3A.29 Angular (valgus) deformity distal femur; LRS ADVanced with Acute Correction Template.
(a) Straight Clamp on rail and Acute Correction Template at end of rail.
(b) Osteotomy and correction of deformity; definitive fixator in place.
Use of HA-coated screws is recommended.

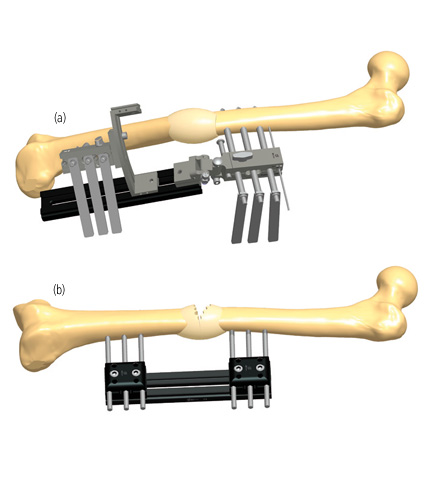

3A.30 Rotational deformity of femur; LRS ADVanced with Acute Correction Templates.
(a) Acute Correction template on rail and Rotational Correction Template offset from the rail.
(b) Osteotomy and correction of deformity; 53000 fixator in place.
Use of HA-coated screws is recommended.

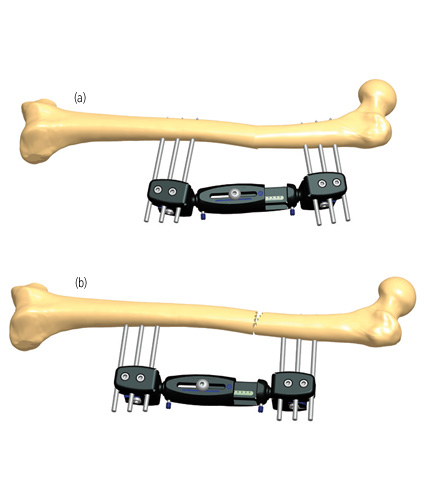

3A.31 (a) Diaphyseal deformity of femur; 90000 series fixator in place.
(b) Osteotomy and correction of deformity.
Use of HA-coated screws is recommended.

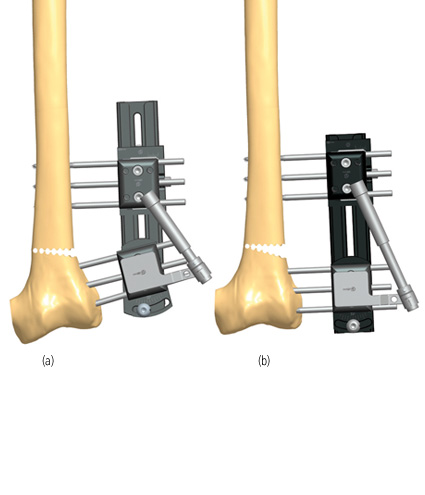

3A.32 Valgus deformity distal femur; LRS ADVanced with Micrometric Swivelling Clamp.
(a) 53000 series fixator in place with Micrometric Swivelling Clamp distally and Translation Clamp proximally.
(b) Osteotomy and correction of angular deformity and translation.
Use of HA-coated screws is recommended.

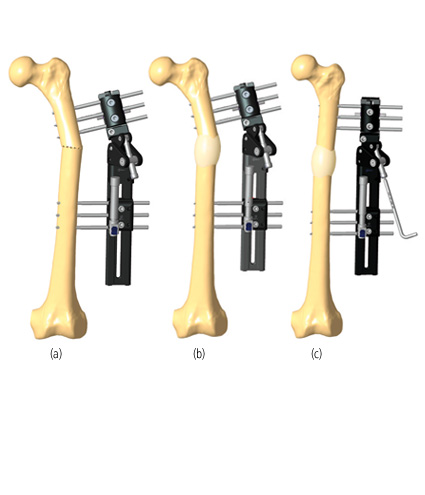

3A.33 Varus deformity of proximal femur; LRS ADVanced with Multiplanar Clamp.
(a) 53000 series fixator in place with Multiplanar Clamp proximally; osteotomy performed.
(b) Initial lengthening by Callotasis to stretch soft tissues slowly.
(c) Acute shortening and angular correction by callus manipulation.
Use of HA-coated screws is recommended.

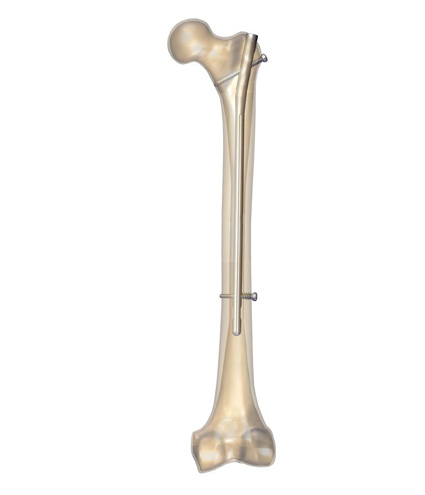

3A.34 Femur Derotation (Agile Nail™)

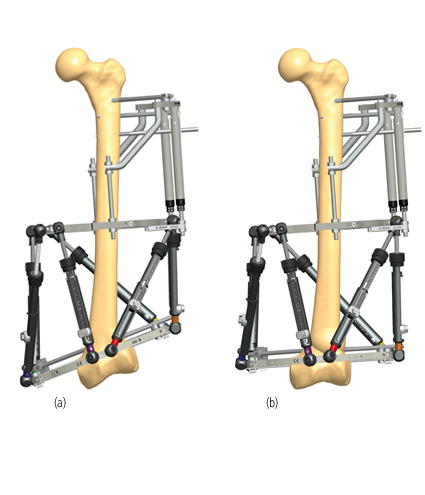

3A.35 Distal valgus deformity.
(a) TL-HEX in place.
(b) Progressive correction of deformity.

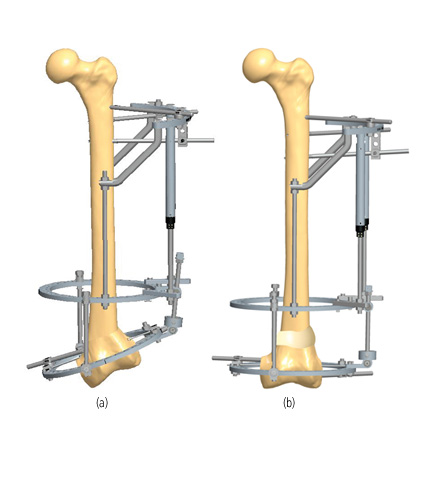

3A.36 Distal valgus deformity.
(a) TrueLok Fixator in place.
(b) Progressive correction of deformity.

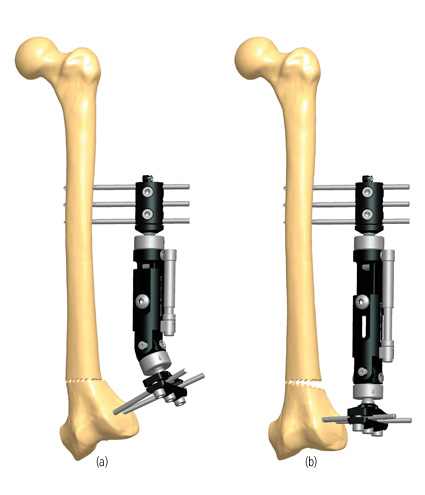

3A.37 Valgus deformity of distal femur; ProCallus Fixator with Self-Aligning Body and Torbay Garches Clamp, which may be used as an alternative to the T-Clamp included in the Self-Aligning Articulated Body Assembly Kit 90035.
(a) 90000 series fixator in place; osteotomy performed.
(b) Progressive correction of deformity by hemicallotasis.
Use of HA-coated screws is recommended.
